AVOID COSTLY FCC FINES FOR LIGHTING VIOLATIONS!

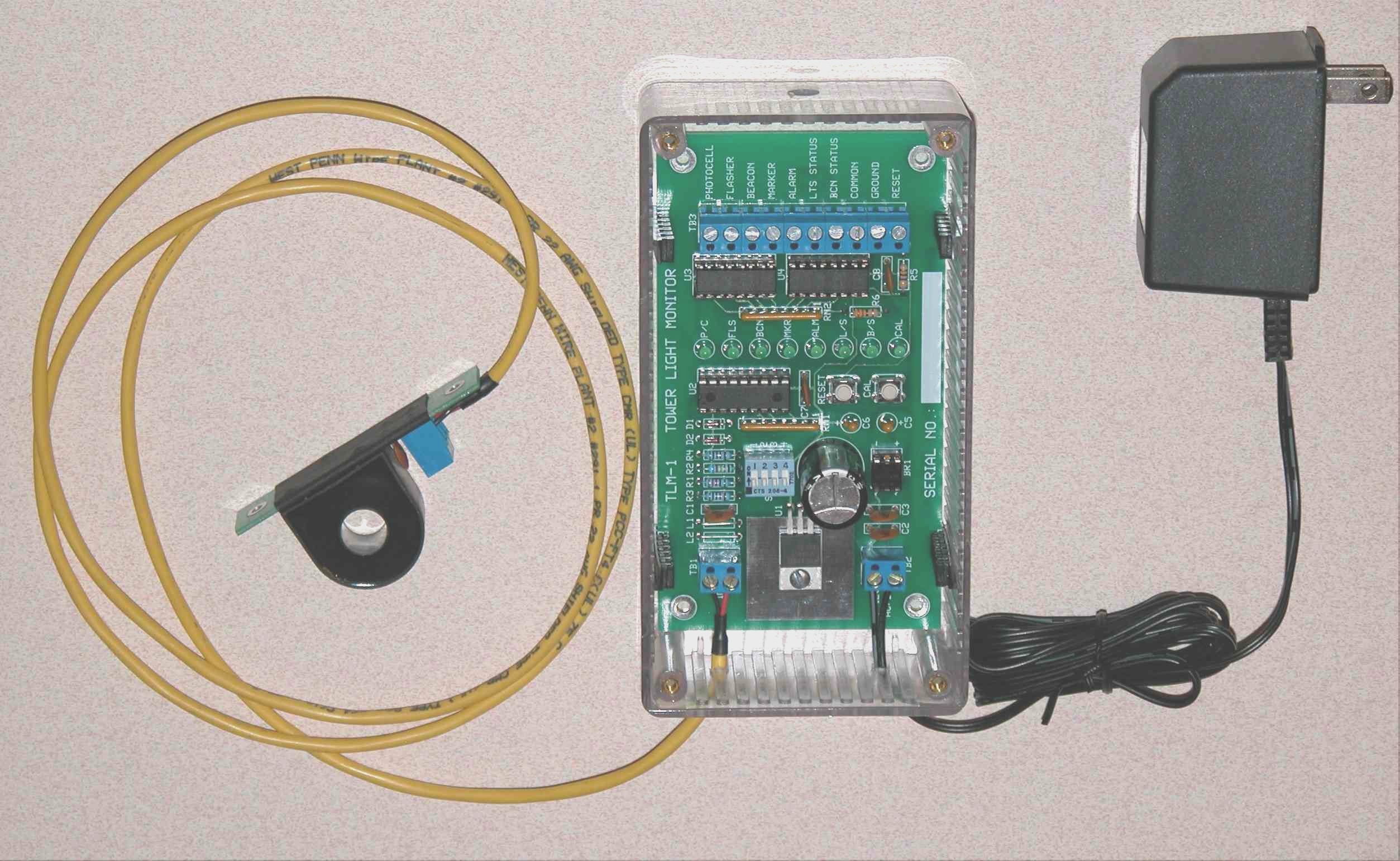

The TLM-1 Tower Light Monitor is a microprocessor based system designed to monitor the status of FAA type A incandescent tower lights. TLM-1 features include:
Total
monitoring of
incandescent-type tower lighting systems
Individual alarm outputs for photocell, flasher, beacon and marker failures
General alarm output for any failure type
Status outputs for lights on/off and beacon on/off
LED indicators for each alarm and status output
Opto-isolated outputs to protect external site monitoring equipment
Easy setup - one button calibration
Easy to install - installs inside the transmitter building, even if the lighting control equipment is located at the tower
Insures total lighting compliance - alarms for single bulb failure (marker and beacon), beacon flash rate or on/off ratio outside of FAA specifications and photocell failure
Failsafe alarms - alarm outputs are normally closed with no alarm condition. Power failure causes alarm open-circuit condition
Compensates for AM antenna tuning unit bulb on the same circuit
Simple design using off-the-shelf components; all ICs are socketed
FM SERVICES WILKESBORO, NC (336) 667-7091
New features in Version 4.0 firmware:
Improved noise filtering for high-RF environments
Input signal quality test mode
Flasher and beacon alarms can be combined to a single alarm
Supports beacon-only and marker-only lighting systems

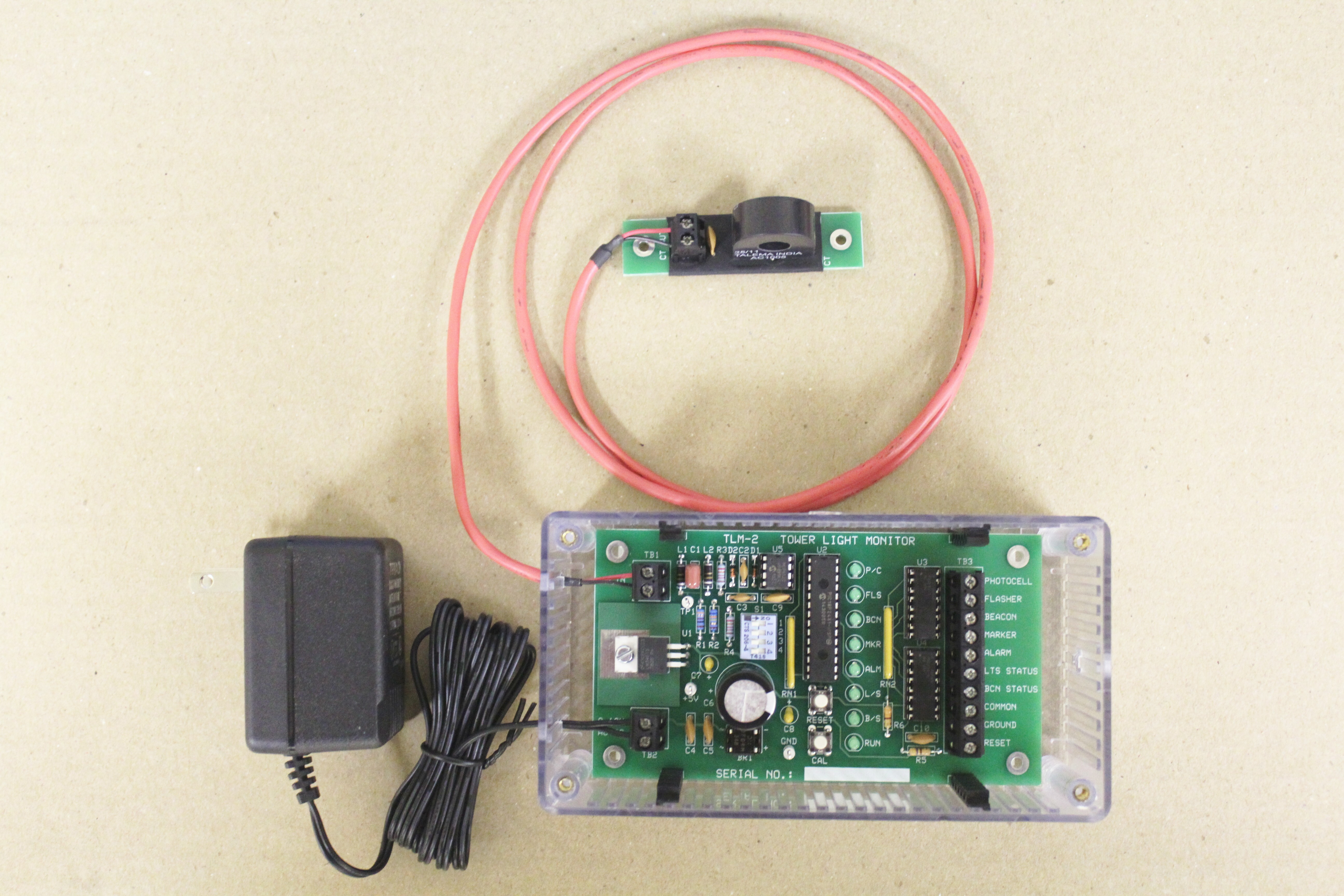

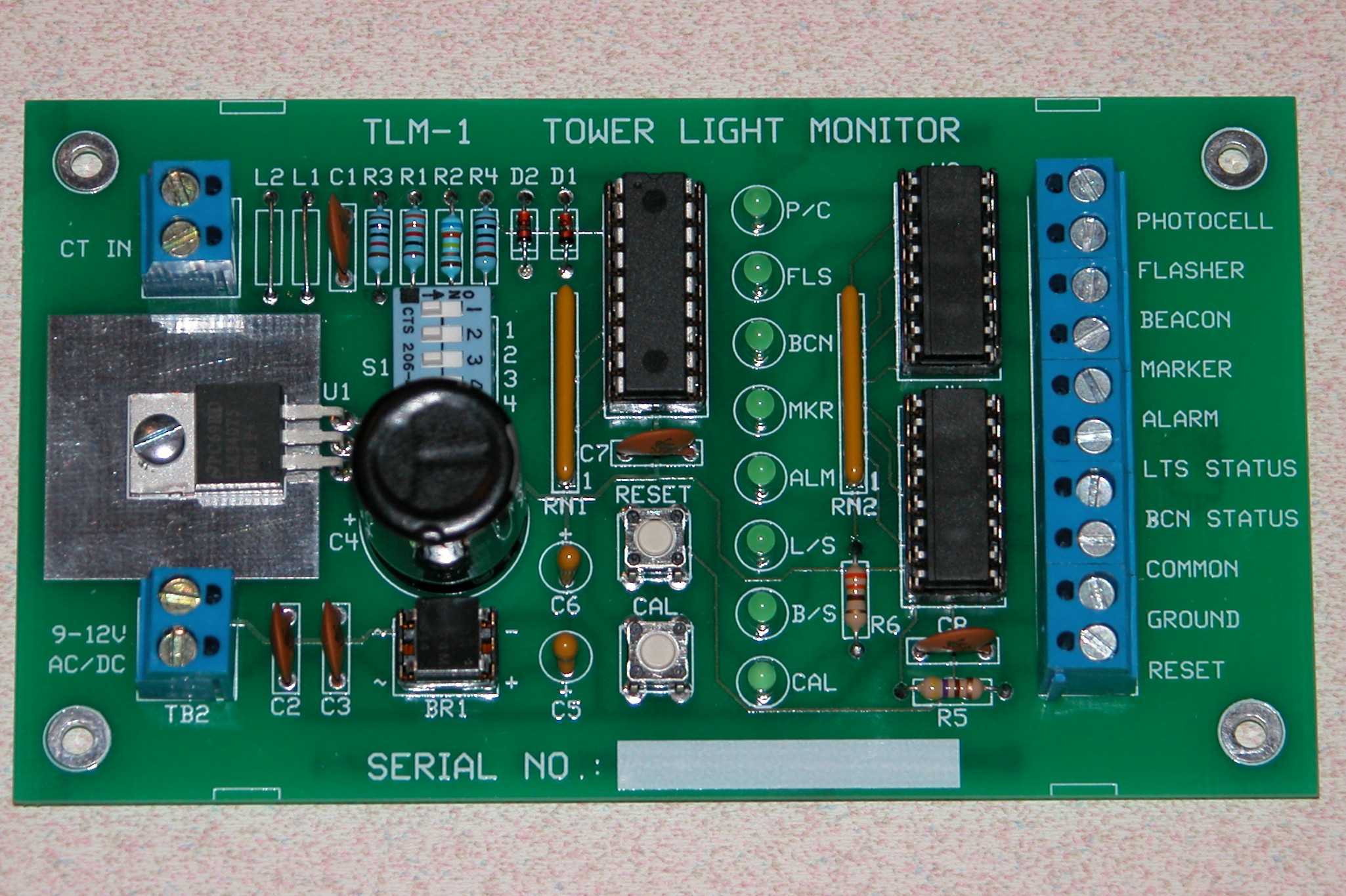

V4.0 Manual (pdf) Board (jpg) Installation (pdf) Multiple Beacon Monitoring (pdf)
